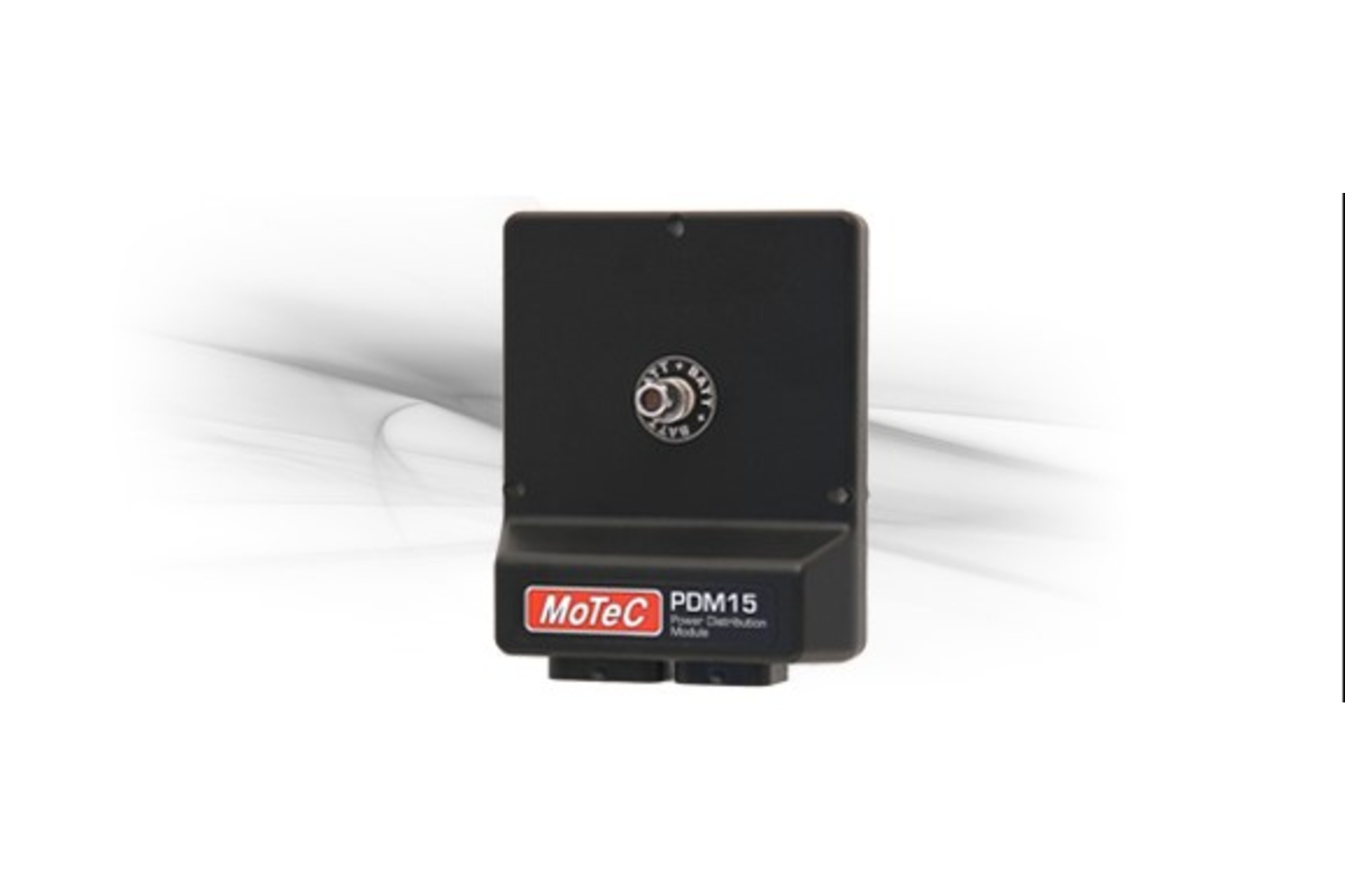

MoTeC PDM15

MoTeC PDM15

$1,850.00 ea

Units only available for purchase to Victorian buyers.

MoTeC’s 15 output Power Distribution Module (PDM15) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight while increasing reliability.

MoTeC CAN Keypads are now available for use with MoTeC PDMs.

Basic PDM15 specifications

Outputs

  • 8 x 20 A outputs - 20 A continuous, 115 A transient (typical)
  • 7 x 8 A outputs - 8 A continuous, 60 A transient (typical)

Inputs

  • 16 x Switch inputs

Communications

  • 1 x CAN

Diagnostic Information

  • Output current and voltages
  • Input voltages
  • Error status

Useful links

Compare the PDM15 with other MoTeC PDMs
